Sterile-Fogg™
Equipment
Sterile-Fogg™
Product Details

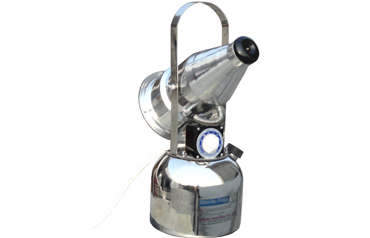

We manufacture and design Electric Fogger also known as electrically Operated Fogger Machines (Sterile-Fogg). Aerial Disinfection system result of an innovative design and excellence in engineering, Our products are meticulously designed with extreme care and Validated for the critical task of prevention of Air microbial contamination in Parma-Food, Biotech, Healthcare Sectors and Life Sciences Industry.
A 5L capacity tank manufactured out of SS-316 grade stainless steel is perfectly compatible to disinfectants acidic as well as alkaline formulations without being worried on the corrosion & erosion of the metal.
Dry Fog Technology
- Dry Fogg Technology for Critical area Disinfection Systems.
- Designed as per compiles to sterile area norms.
- Generates ultra-fine and non-wetting aerosols.
- Not wet floors and surfaces.
- Highly effective for the critical areas to prevent microbial contamination.
- Most suitable mechanism for areal Decontamination.
- Uniform spread flow & Ultra low consumption of disinfectant.
- Low mountainous cost and most reliable in operation.
- Compatible with all kind of leading Disinfectant/fumigant solutions.
- Very popularly known as (OT Fogger/ Clean Room Fogger/ ULV Fogger/ Sterile Area Fogger/ Production Area Fogger et.al).
Application Areas
- Pharmaceuticals & Biotech Industries Sterile Area.( Clean Room Fogger)
- Medical Device manufacturing Area.
- Hospital and Healthcare Industries specially for OT( OT Fogger).
- Food processing & Dairy Industries.
Technical Features
- UL approved American high speed Dry Motor, Maximum reliability and best performance.
- UL & CE approved German Make Mechanical timer for switch off.
- MOC of Disinfectant thank set of best grad of SS-316 & SS-304.
- Disinfectant tank fully Autoclavable, leak proof set, sturdy and rust free.
- Nozzle( SS-316 ) generates aerosol less than a micron size drops(Dry fog).
- Steril-Fogg TM used tubes and hardware as per sterile area norms.
Specifications
| Aerosols : | Sub micron size(Non-Wetting) |
| Flow rate output : | 50ml/minute |
| Sound Level db : | 80db@ 1 m distance |
| Spread & reach : | 10 to 15 ft |
| Solution Tank Assembly : | 5 liter Stainless steel grade 316/304 |
| Solution Tank Cover with handle : | Stainless steel Grade 316 |
| Hardware & Silicon tubing : | SS 316 &Compiles to FDA |
| Blower head : | High purity Aluminum |
| Power supply : | 240V,50Hz,1A |
| Cable length : | 2.5 meter |
| Dry Motor : | UL certified American Make |
| Machine weight : | 5.0 kg portable |
Applications
Sterile-Fogg is dedicated foggers for aerial sterilization using aqueous disinfectants. Very fine droplets form clouds that fill the closed room and impart 100% efficacy bringing microbial load to almost zero. The fine fog gets uniformly distributed & settles on walls, ceilings and the other surfaces making them free of contamination. Thus Spring Sterile-fogg does aerial as well as surface disinfection. These fine droplets evaporate quickly without causing wetting effect & are popularly termed as “dry fog”.
MOC
All wetted parts as well as complete hardware is in best grade stainless steel (316). 100% components are free of corrosion/erosion eliminating the risk of damage from sultry weather / chemicals etc. A high powered & high efficiency drive motor is incorporated which sustains large voltage variations. Motor & timer-switch used are UL & CE certified.
Standard Features & Benefits
Sterile-Fogg generates ultra-fine and non wetting aerosols, No wet floor and surfaces. Ultra low consumption of disinfectant ensures economy.
Maintenance and service
Sterile-Fogg is simple user-friendly machines and free of maintenance. In the event of any problem, service / replacement is assured rectification of the same within one year warranty period. This is a dedicated fogger that operates on single phase 240 Volts 50Hz power supply and droplet size is less than a micron.
